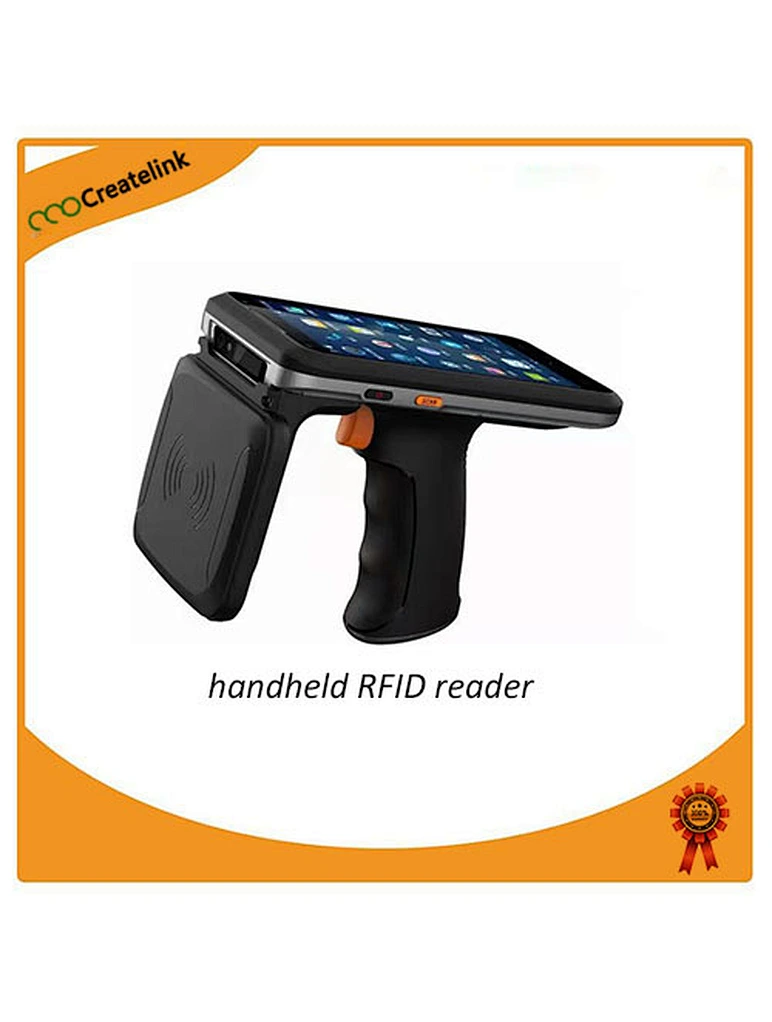

RFID handheld reader
CL30001R1
FOB
500 pieces
1000000pieces / Month
China
25Day

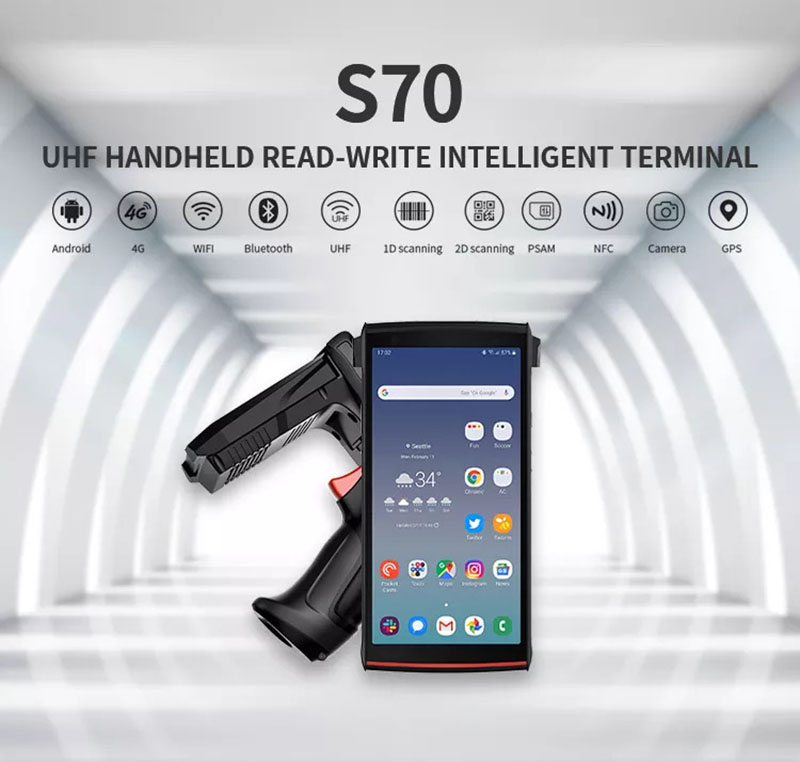

IP65 industrial asset tracking 4G Blue tooth Android Handheld UHF Long range RFID Reader
Features:
Inudtrial and Humanized Hardware design
High speed octa-core CPU,large memory Android
Excellent performance in UHF RFID reading
Features:
Inudtrial and Humanized Hardware design
High speed octa-core CPU,large memory Android
Excellent performance in UHF RFID reading
Quantity
| CPU | MTKOCTA2GHz | ||
| Operating system | Android8.1 | ||
| Memory | memory | RAM：DDR4 2GB（optional3G/4GB/6GB) NandFlash：16GB（optional32/64GB/128GB) | |
| Extend memory | MicroSD/TFcard slot(Max up to 128G) | ||
| Display | 5.5 inch QVGA imitative glass durable touch screen,720X1440 pixel,350cd/㎡ | ||
| keyboard | 5 keys, 3 touch function key | ||

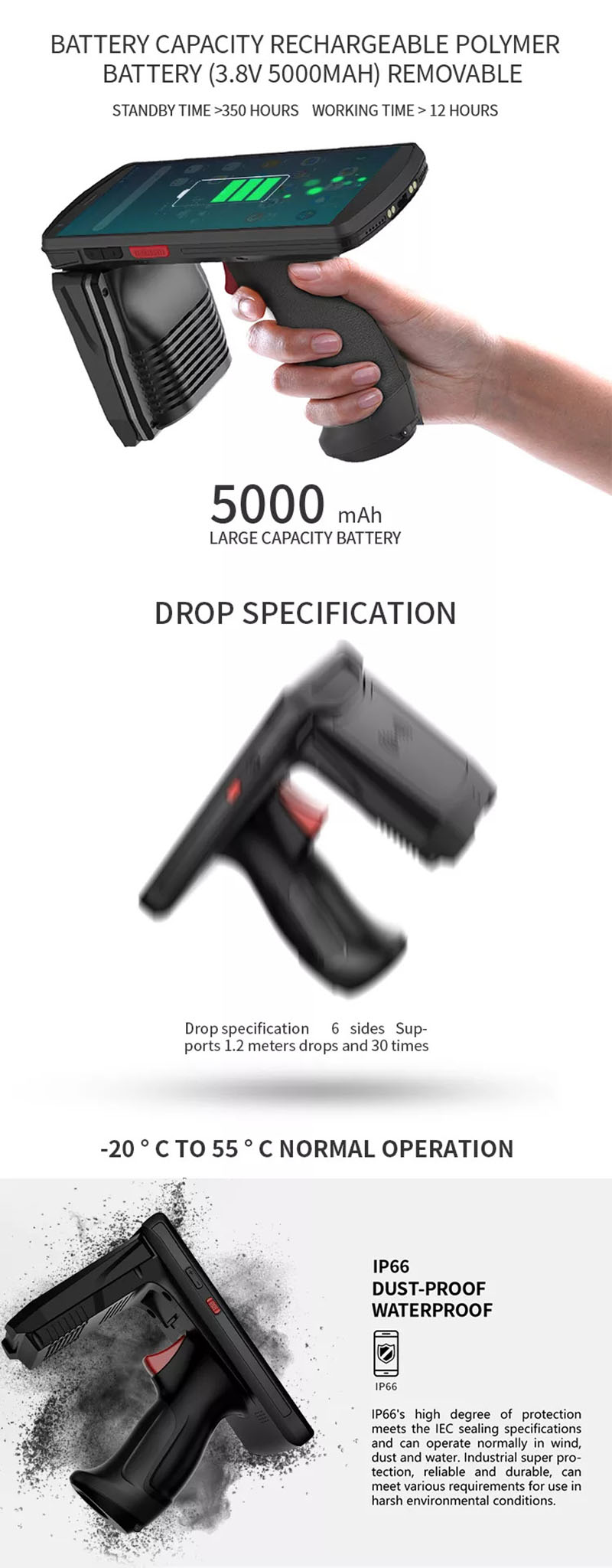

| battery | 3.8V 4500mAh Rechargeable Li-polymer Battery | ||
| size | 174×82×22mm | ||
| weight | 300g | ||
| camera | 13MP,front camera 5MP（optional）,automatic focusing | ||
| slot | Micro SD（TF）card slot * 1, Micro SIM card slot * 1， PSAM card slot * 2 | ||
| Light | Battery light * 2 | ||
| interface | Type-C *1, cradle charger interface | ||
| Audio | Speaker * 1, Microphone *1, headphone * 1 | ||
| Phone function | Support HD voice mobile call | ||
| Vibrating alert | support | ||
| compass | support | ||
| Audio decibel | Louderspeaker90dB | ||

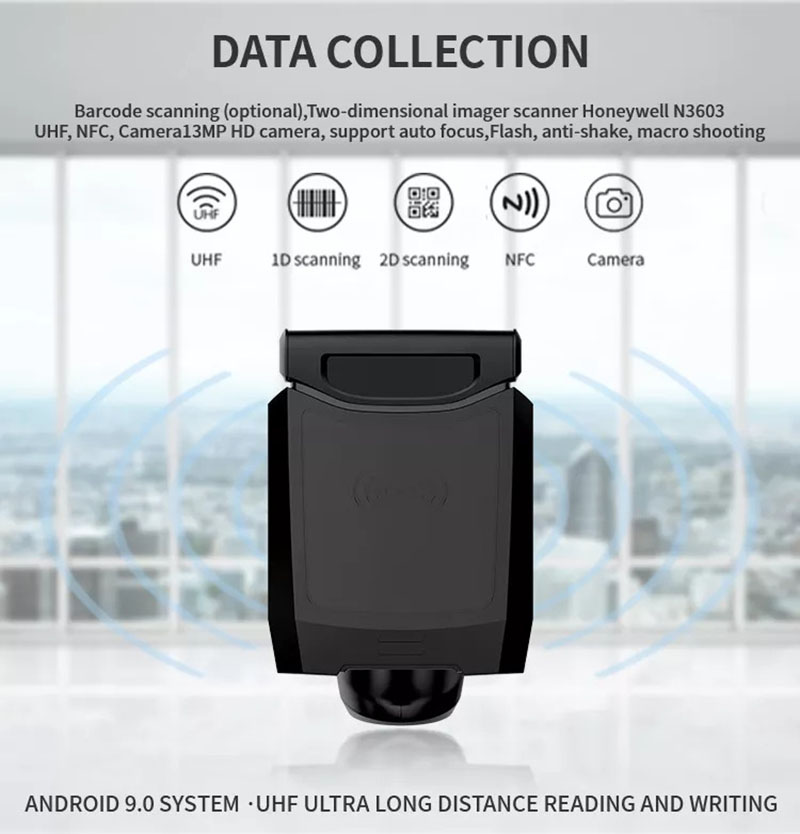

| Data collector specification | |||
| Support barcode (optional) | 1D barcode | SE955/U966/N4313 Code 39,Codabar,Code 128,Discrete 2 of 5,Interleaved 2 of 5,Code 93,UPC-A,UPC-E，EAN-8,EAN-13,MSI,EAN-128,ISBN/ISSN etc. | |
| 2D QR code | Imported Zebra 4710 1D:Code 39,Codabar,Code 128,Discrete 2 of 5,Interleaved 2 of 5,Code 93,UPC-A，UPC-E,EAN-8,EAN-13,MSI,EAN-128,ISBN/ISSN etc. 2D：PDF417,QR Code(QR1,QR2,Micro QR),Data Matrix, GS1-DataBarTM(RSS-Limited,RSS-14,RSS-14 Stacked,RSS-Expand) etc. | ||
| NFC（optional） | ISO14443A,ISO15693,Mifare（supportS50 &S70 card read and write） | ||
| 125K(optional） | 125KHZ | ||
| UHF RFID（optional） | 2-3 meters distance for UHF reader | ||
| WiFi | IEEE 802.11a/b/g/n/ac, support 2.4GHz,5.0GHz | ||
| Bluetooth | Bluetooth4.1 | ||
| GPS | SupportGPS, Beidou | ||
| Wireless communication | FDD-LTE | ||
| Operating Environment | |||
| Operating Temperature | -20°C~+55°C | ||
| Storage Temperature | -40°C~+80°C | ||
| Environment Humidity | 5%RH ~ 95%RH (no condensation | ||
| IP rate | IP66, 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature | ||
| accessories | Type C charging cable * 1, battery * 1. | ||
Main advantages:
♦ Good RF performance on both metal and non-metallic surfaces;
♦100% tested by the European Union's label compliance test system;
♦100% passed the memory write test;
♦ Material and design are tested for reliability;
♦ Verified and use by well-known domestic and international customers;
♦ Adopt high performance MONZA 4QT chip, to get the best read effect
