UHF Airline Luggage tag RFID tag used for baggage tracking

RFID luggage tag

Model NO. CL2000L

Delivery FOB

minimum order 500 pieces

Supply Ability 10000000pieces / Month

Country of Origin China

Stock Time 30Day

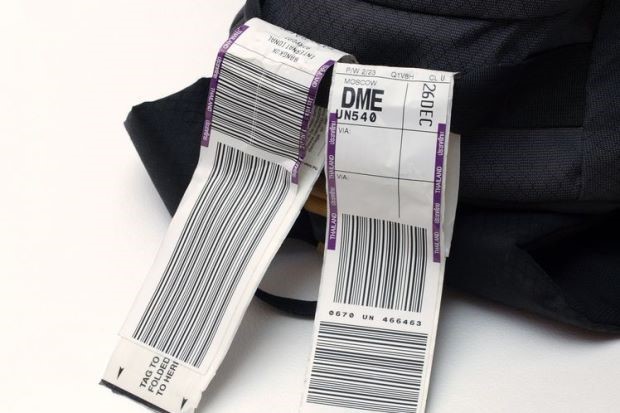

UHF Luggage tags, also known as baggage tags, have traditionally been used by bus, train and airline companies to route passenger’s luggage which is checked on to final destination.

The passenger stub is typically handed to the passenger or attached to the ticket envelope:

a) To help the passenger in identifying their bag among similar bags at the destination baggage carousel;

b) As proof—still requested at a few airports—that the passenger is not removing someone else's bag from the baggage reclaim hall;

c) As mean for the passenger and carrier to identify and trace a specific bag that has gone astray or not delivered at the destination.

Quantity

Product name	airplane rfid luggage tag
Material	Paper
Frequency	125Khz / 13.56Mhz / 840~940Mhz / NFC
Printing	Printing, encoding, Serial number, Barcode
Operating Frequency	UHF(860-960 Mhz)
Reading Range	1-6m (depends on the reader )
Crafts of uhf label	Serial number, barcode, chip ecoding, ect
RF Protocol	ISO/IEC 18000-6C (EPC Gen2)
Application	supply chain,logistic, asset tracking, apperal management

Normally, UHF tag has a long reading distance, which is perfectly suitable for airplane luggage management. Besides, UHF’ character of anti-collision makes it much easier in practical operating.

Reading distance depends on the reader and using environment. Reading distance can achieve 6 meters with a UHF handheld reader, which is the most frequently used in automatic luggage sorting system.

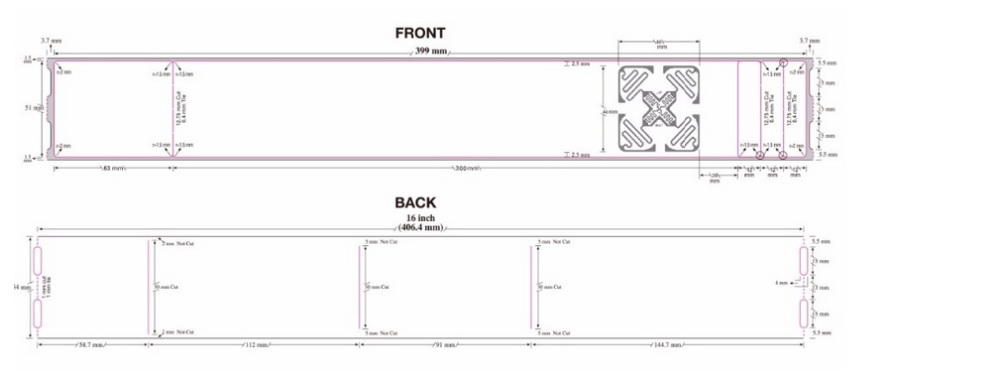

Standard size is 399*51 mm, 54*540mm as the one shows above.

Createlink provides customized sizes based on your request.

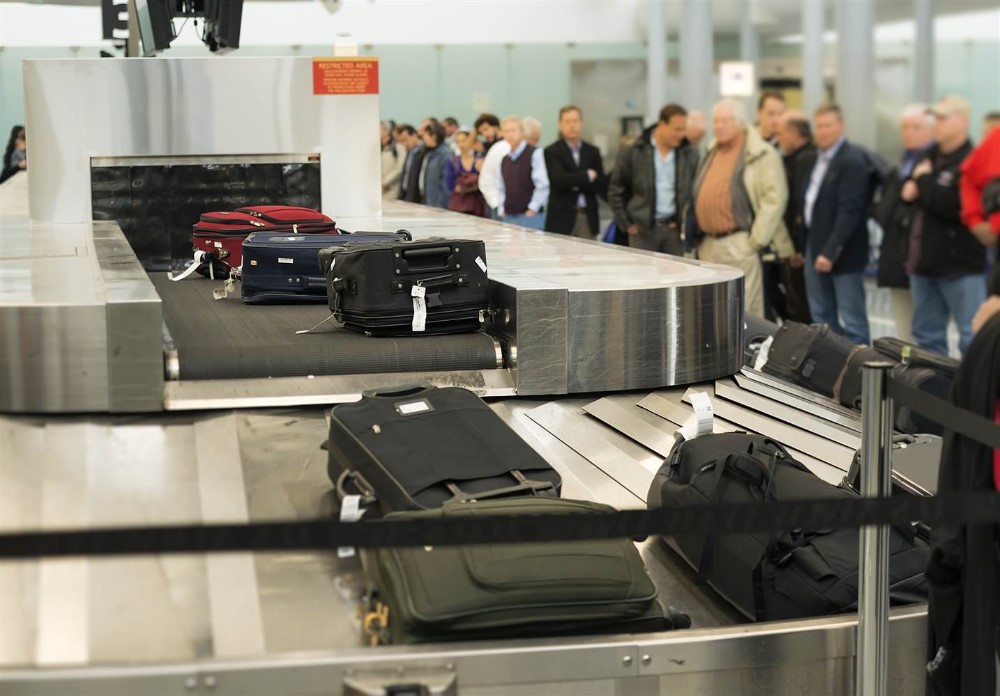

Application of UHF luggage tag in airport:

Custom size paper suitcase UHF airplane RFID luggage tags

Why UHF luggage tag?

Compared with the traditional barcode label,RFID enabled UHF tag have better performance in real time tracking and security ,less mistaking and loss.As UHF RFID technology development,the cost is almost not increasing at all.

More airlines are using UHF RFID tags for baggage tracking now,including Delta Air Lines , Qantas airlines, Lufthansa German Airlines.

Here is the product spec details:

Note:

Reading distance depends on the reader and using environment. Reading distance can achieve 6 meters with a UHF handheld reader, which is the most frequently used in automatic luggage sorting system.

Custom size paper suitcase UHF airplane RFID luggage tags
